Downlight lens 11S Series

Application: Down light/Track light/Wall washer light
Dimension: /
LED: CLL022/CLL032/CLL042/CLL700/CLL710/CXA1507/CXA1830/CXA2530/V10/V10C/V13/V15/PL1208/PL1203/CXM-9/CXM-9-AA30/CXM-11/CXM-14
Degree: 15°/24°/36°/55°/60°
Material: PC-UV/PMM
Endure Temperature: -40ºC~+80ºC(PMMA) or -35ºC~+120ºC(PC)
Certification: RoHS
Transmittance: > 90%

With multiple size and degree
With high production capacity
Hot sale in the wordwide market
High cost performance

Share to:

Product class:  LENS

Item No.: 11S Series

Material: PMMA

Certification:  RoHS

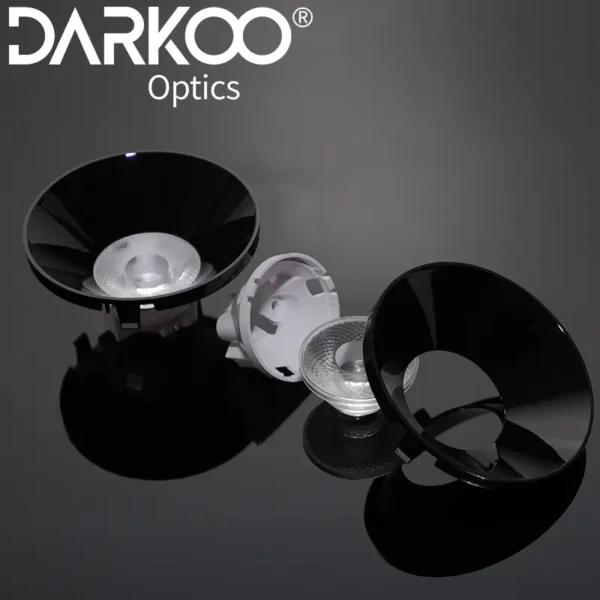

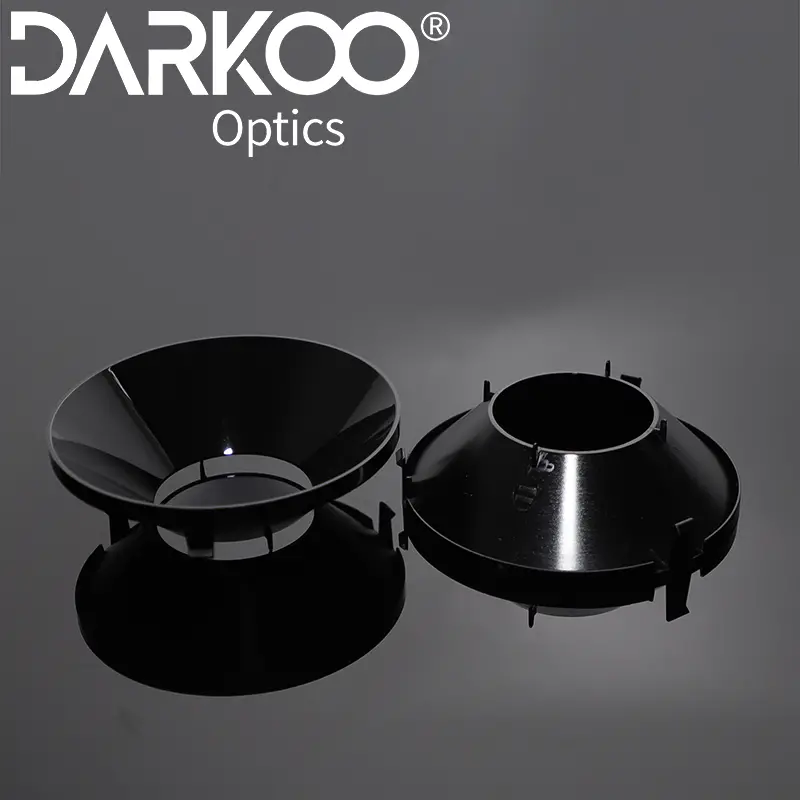

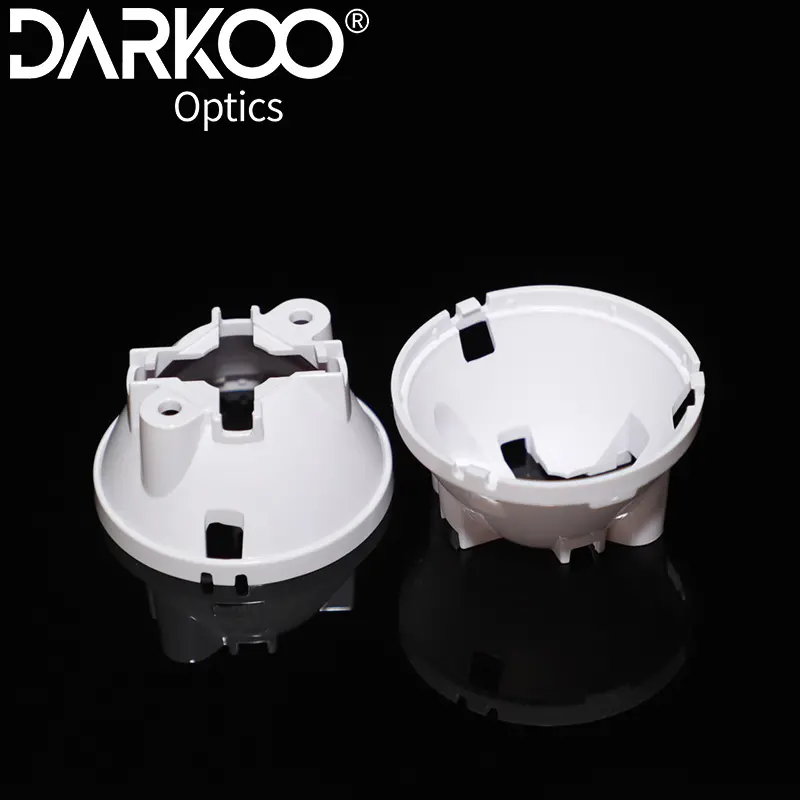

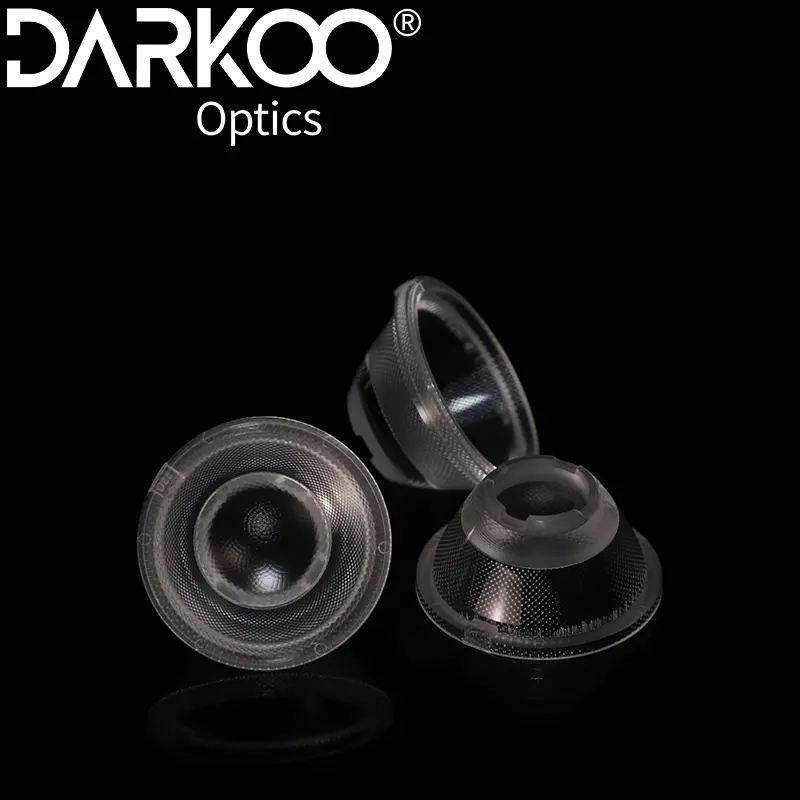

Downlight lens 11S Series 1Downlight lens 11S Series 2Downlight lens 11S Series 3Downlight lens 11S Series 4
