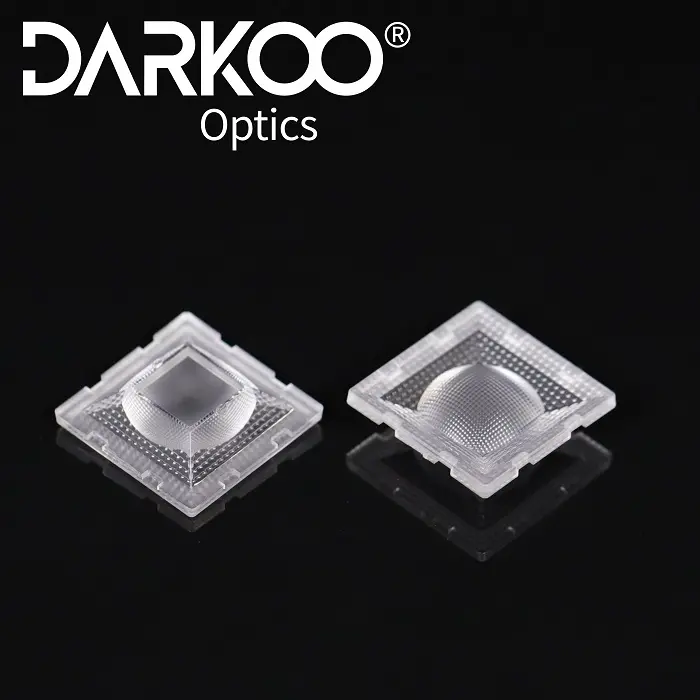

Office light lens DK-35×35-85-LENS
Application: Linear light/Office light/Anti-dazzle light
Dimension: 280*40-43mm/285*20-60mm/286*61-65mm
LED: 3030/2835/5630/ZHAGA
Degree: 30-120°/P15-40°
Material: PC-UV/PMMA
Endure Temperature: -40ºC～+80ºC(PMMA) or -35ºC～+120ºC(PC)
Certification: RoHS
Transmittance: > 90%
With multiple size and degree
With high production capacity
Hot sale in the wordwide market
High cost performance
Share to:
|

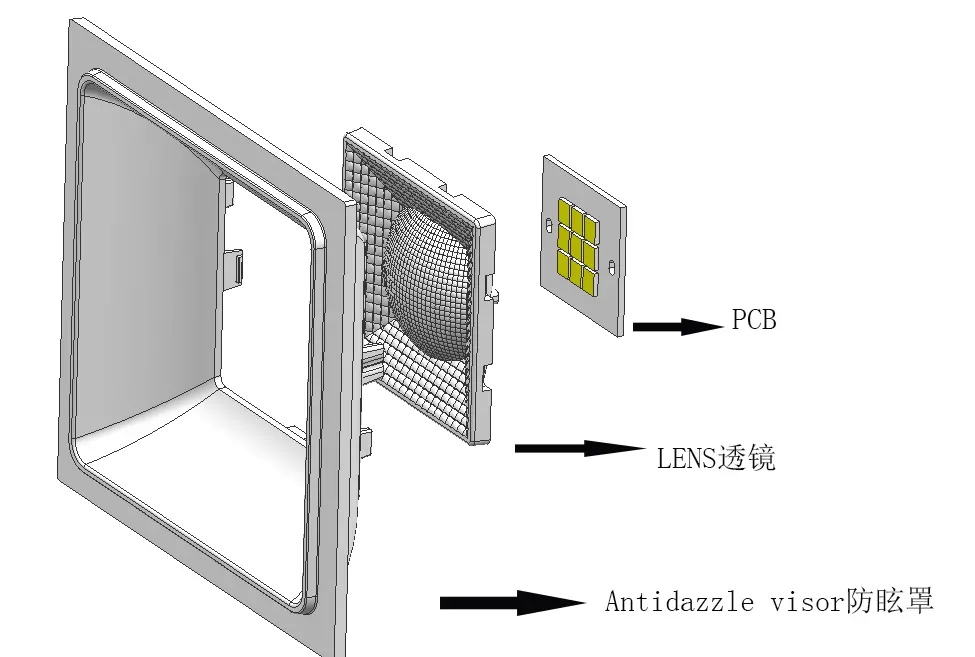

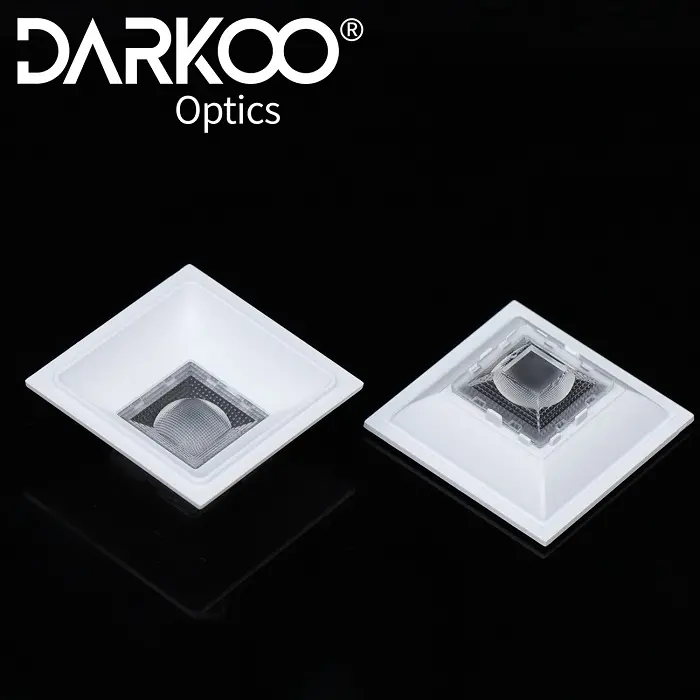

Product class |
Item No |
Material |
|

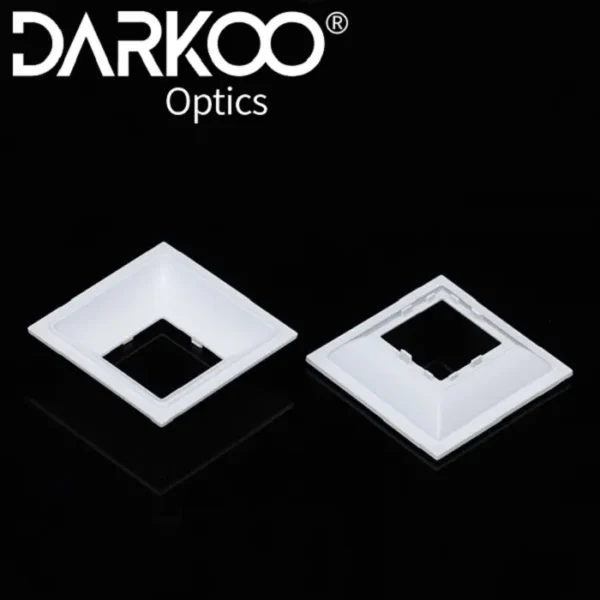

Antidazzle visor |
DK-35*35-GSZ |
PC |
|
Lens |
DK-35*35-85-LENS |
PC |
|
Item No |
Picture |
Size |
Matched LED |
Lighting Application |
|

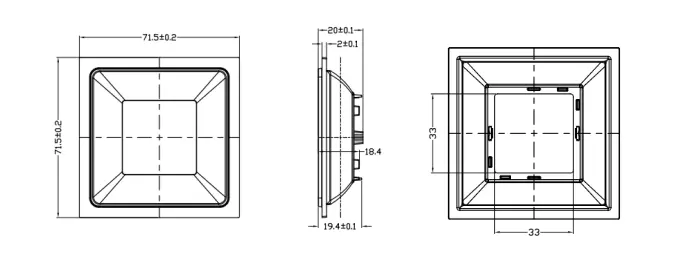

DK-35*35-GSZ
|
Diameter: 71.5*71.5MM Height:20MM |
5050 |
office lighting |
|
|

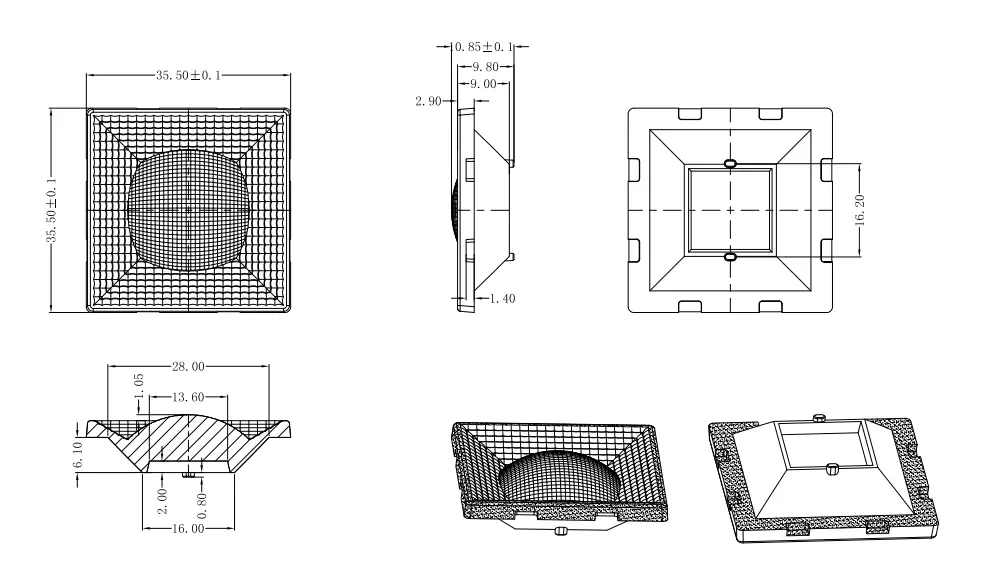

DK-35*35-85-LENS
|
Diameter: 35.5*35.5MM Height:10.85MM FWHM:85°
|
|||
